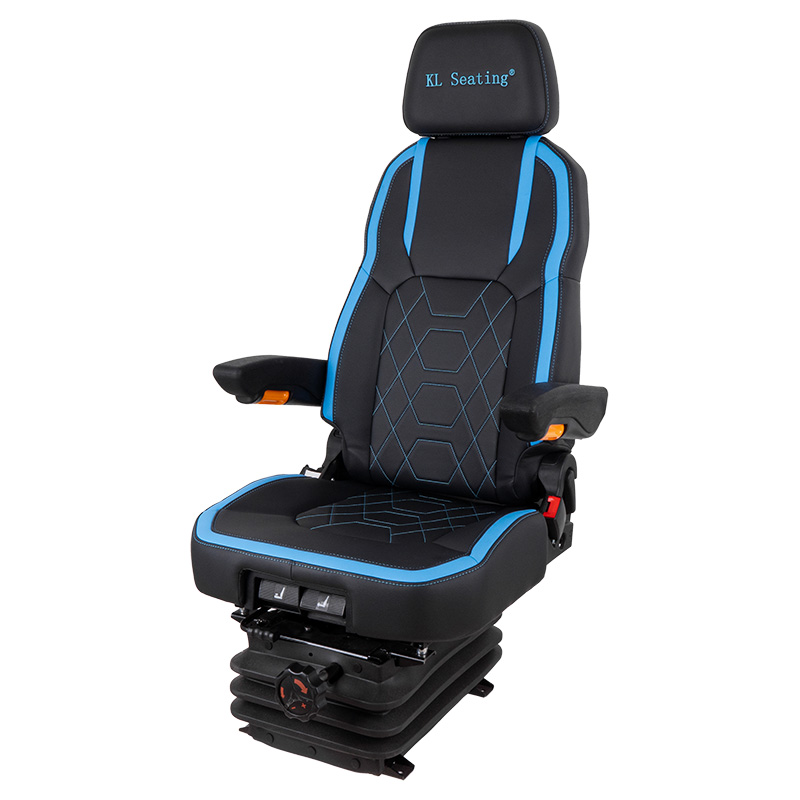

KL02 Mechanical Suspension Seat for Construction Machinery and Heavy Equipment

For operators of trucks, construction machinery and heavy equipment, a comfortable and supportive seat plays an important role in the overall driving experience. Long working hours, uneven roads and machine vibration can create significant discomfort for drivers and operators.

To meet the seating requirements of demanding working environments, KL Seating introduces the KL02 Mechanical Suspension Seat, a durable suspension seat designed for construction machinery, trucks, heavy equipment and buses.

With 70mm mechanical suspension stroke, 50–130kg weight adjustment and 190mm fore/aft adjustment, the KL02 provides flexible seating adjustment for different operators and working conditions.

Designed for Demanding Working Environments

Construction machinery and heavy equipment often operate on uneven surfaces where vibration and shocks are unavoidable. A suitable suspension seat can help provide a more stable and comfortable seating position during operation.

The KL02 uses a mechanical suspension system with a 70mm suspension stroke, helping the seat absorb vertical movement generated during vehicle operation.

The seat is suitable for a wide range of applications, including:

*Construction machinery

*Heavy equipment

*Trucks

*Buses

*Industrial vehicles

*Other off-road equipment

Its practical design makes the KL02 suitable for both original equipment applications and replacement seat requirements.

190mm Fore/Aft Adjustment for Flexible Positioning

Different operators have different body sizes and driving preferences. The KL02 features 190mm fore/aft adjustment, with each adjustment step set at 10mm.

This allows operators to move the seat forward or backward and find a more suitable driving position.

The adjustment range is particularly useful for vehicles that are operated by multiple drivers, helping provide greater flexibility without changing the complete seat assembly.

Key adjustment specification:

Fore/Aft Adjustment: 190mm
Adjustment Step: 10mm

---

50–130kg Weight Adjustment

The KL02 mechanical suspension seat is designed with a 50–130kg weight adjustment range.

The suspension setting can be adjusted according to the operator’s weight, helping the suspension system provide a more appropriate seating response.

This feature makes the KL02 suitable for different operators and helps improve flexibility in commercial and industrial vehicle applications.

---

70mm Mechanical Suspension Stroke

One of the key features of the KL02 is its 70mm mechanical suspension stroke.

Mechanical suspension allows the seat to move vertically in response to vehicle movement. This is especially useful in construction machinery and heavy equipment where operators may frequently encounter rough terrain, vibration and uneven surfaces.

The suspension system is designed to provide a more controlled seating movement while maintaining a stable operating position.

---

Durable PVC Seat Material

The KL02 uses PVC upholstery, providing a practical surface for demanding commercial and industrial applications.

PVC is commonly used for vehicle and machinery seats because it is easy to maintain and suitable for environments where the seat may be exposed to dust, dirt and frequent use.

The black seat finish combined with blue detailing also gives the KL02 a modern appearance while maintaining the professional look required for industrial equipment.

---

Flexible Mounting Options

The KL02 supports several common bottom mounting hole positions:

230mm / 285mm / 330mm

This provides greater flexibility when replacing existing seats or integrating the seat into different vehicle platforms.

Before installation, buyers should check the mounting dimensions of the original seat and confirm compatibility with the KL02 mounting configuration.
