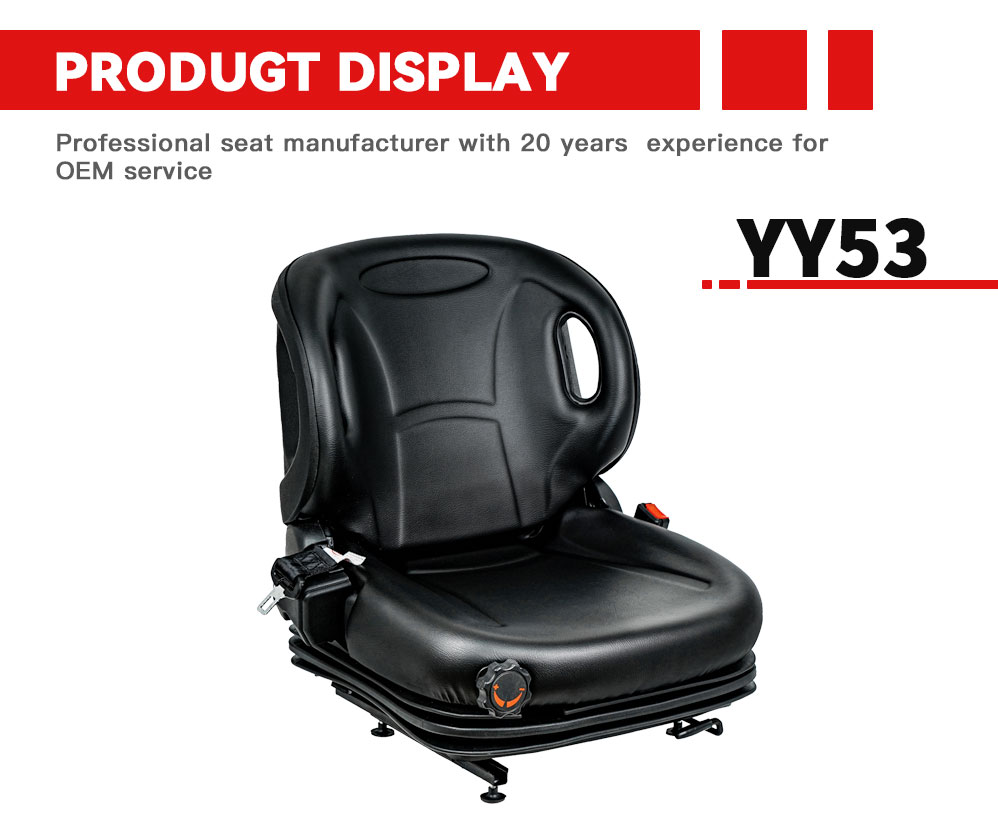

YY53 Precision Pvc Electric Material Handling Forklift Seat Manufacturer

The YY53 mechanical suspension seat is an ergonomically designed, professional-grade operator seat for forklifts and industrial vehicles. It combines a high-backrest design with integrated side-wing lumbar support, a mechanical suspension base with bellows dust cover, and a precise weight adjustment handwheel — delivering all-day comfort and effective vibration damping for operators in demanding warehouse, logistics, and port environments.

Key Features

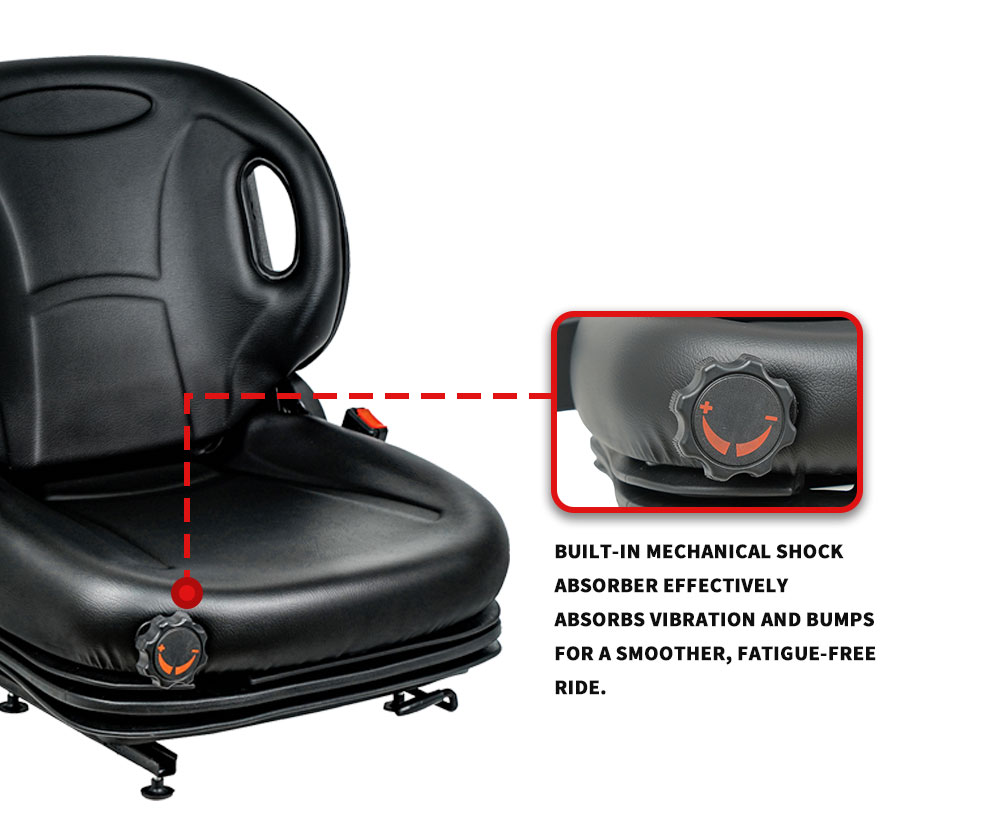

1. Mechanical Suspension, 48 mm Travel — Built-in spring-and-damper system absorbs shock from uneven floors, loading impacts, and vibration. The star-shaped weight adjustment handwheel lets the driver tailor suspension firmness to body weight for a stable, fatigue-free ride.
2. Ergonomic High Backrest — One-piece high back with side wings provides strong lateral and lumbar support; the wide cushion with raised side edges naturally wraps the hips for long-shift comfort.

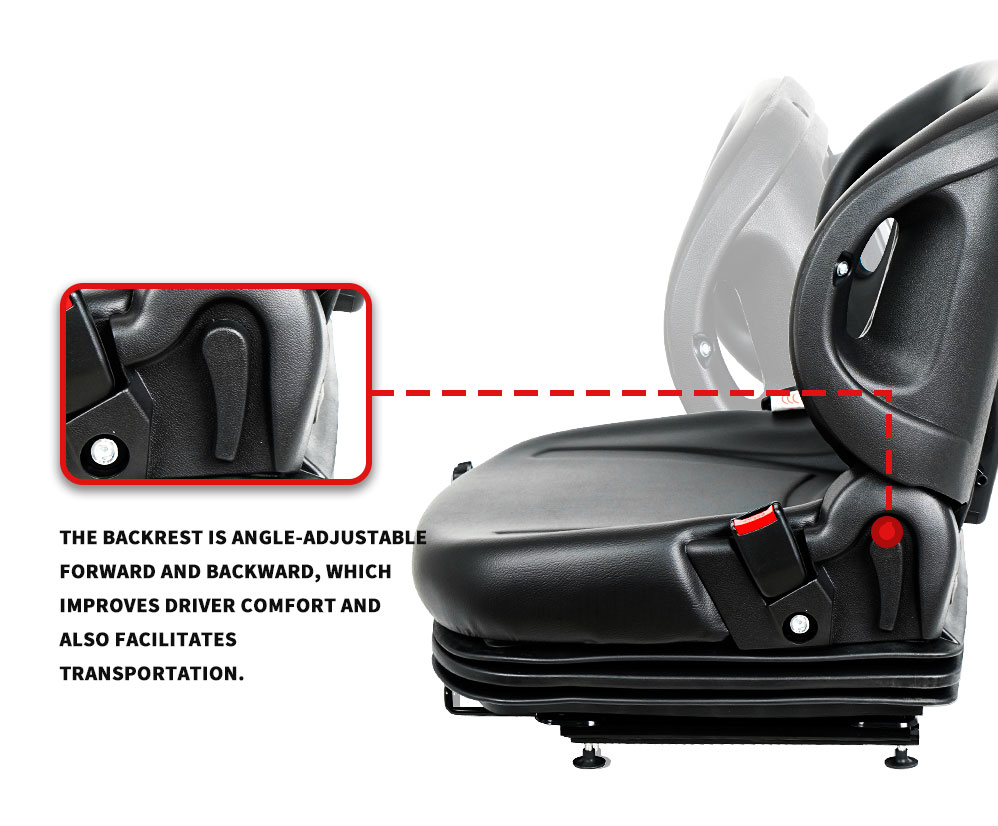

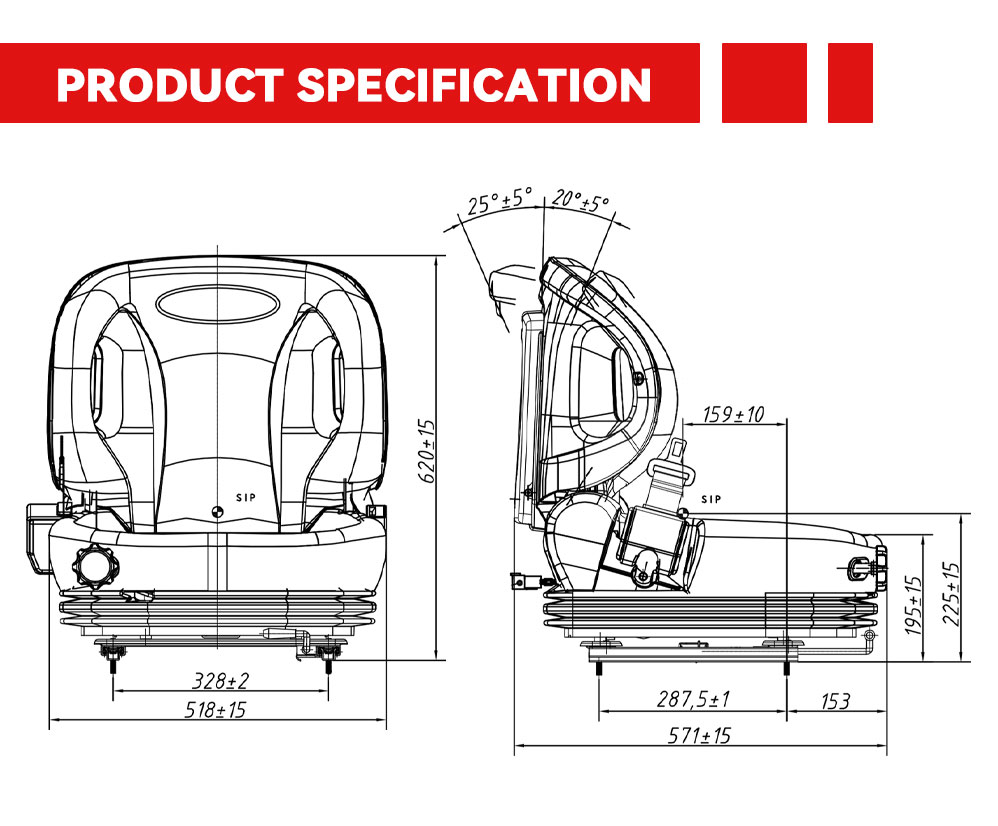

3. Wide-Angle Backrest Recline — Backrest tilts 20° forward / 25° backward via the side handle, adapting to different driving postures and visibility requirements.

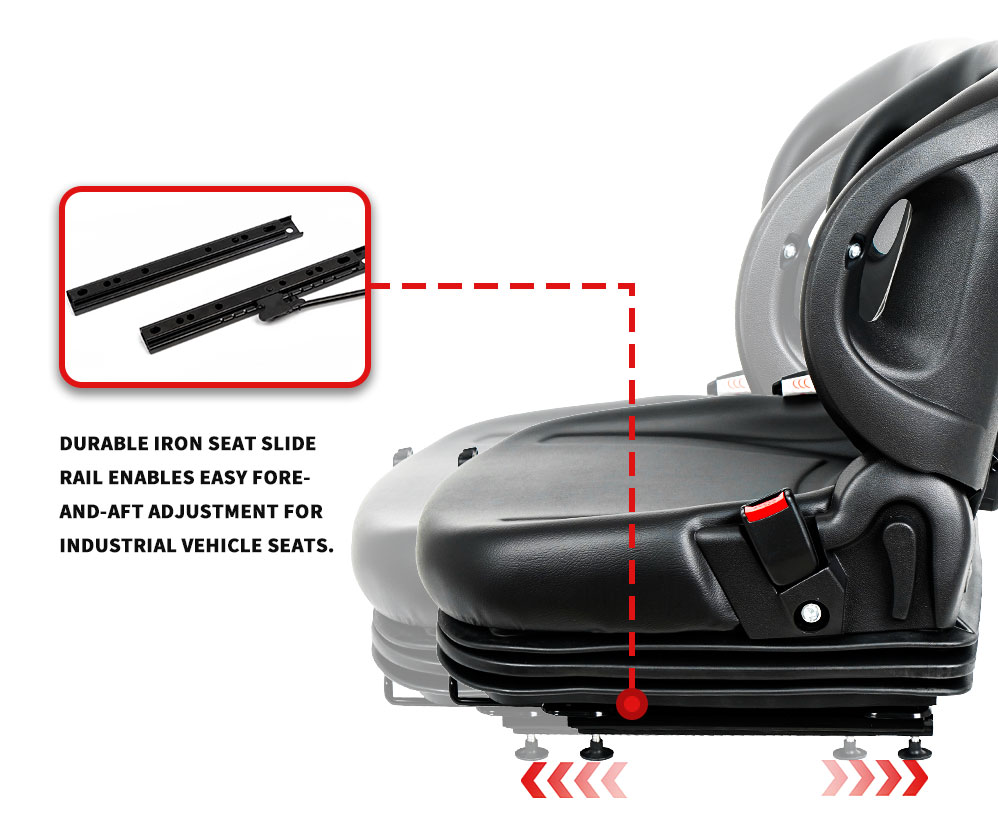

4. H83 Slide Rail, 176 mm Adjustment — Fore-aft travel of 176 mm with a 16 mm detent pitch enables precise positioning to suit operators of all sizes.

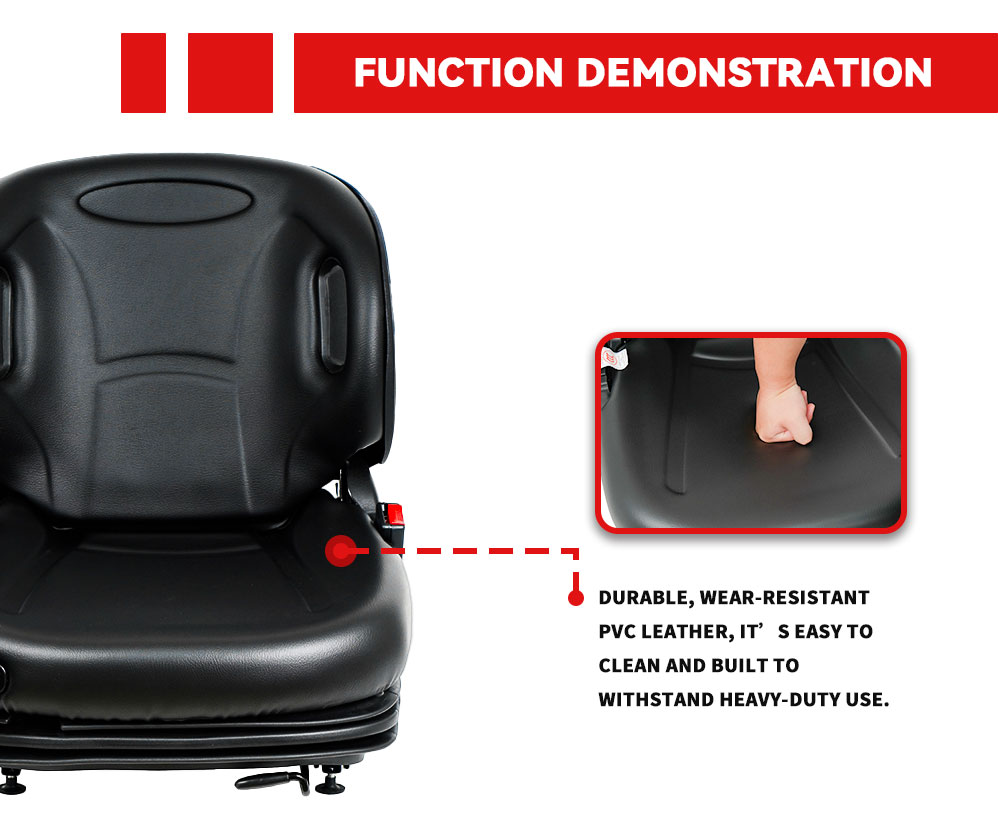

5. Durable, Easy-Clean Upholstery — High-resilience cold-cure PU foam with wear-resistant, waterproof, and oil-proof PVC leather or fabric cover (typical configuration — please confirm with our sales team).

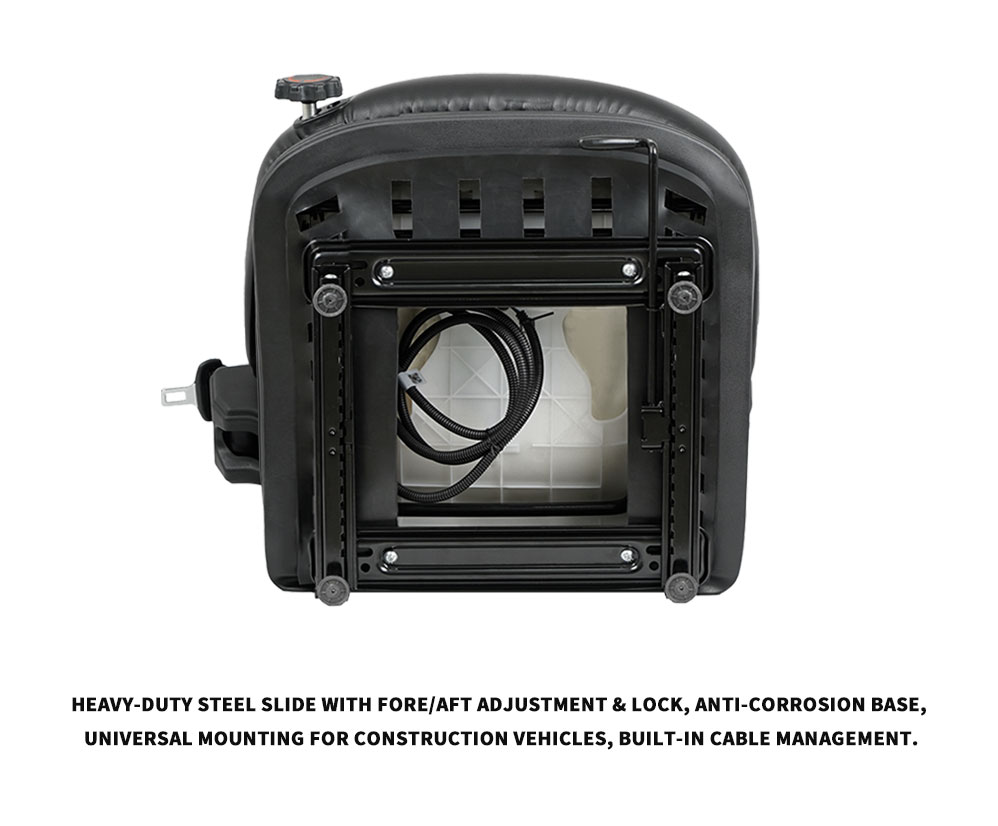

6. Heavy-Duty Steel Construction — Steel frame and slide rails with powder-coated / electrophoretic anti-corrosion finish for long service life in tough environments.

Applications

• Counterbalance forklifts (1–10 t)
• Reach trucks and pallet trucks
• Warehouse, logistics, and port machinery
• Other industrial vehicles requiring operator comfort and vibration damping

Kind Reminder

• Please check the installation parameters of your device before purchasing to ensure that the seat is compatible.
• Clean the surface mud and stains promptly after daily use to slow down material aging.
• Avoid contact with sharp and hard objects to prevent scratching the surface of the seat.
